Welcome to our            5G Haus
AI, IOT AND 5G PRODUCTS AND SOLUTIONS
5G End-to-End solutions for the next generation cellular network

Atlantik Elektronik 5G House

OFFERING SOLUTIONS FOR THE FUTURE

Atlantik 5G Qualcomm Snapdragon based Technologies include solutions for the three key requirements of next generation cellular connectivity. Enhanced Mobile Broad Band (eMBB) addresses the need for increasing data by providing higher data rates, increased traffic density and high speed (movement) access.

Applications: Fix/mobile wireless access, router, gateway, VR/AR, UHD video, smart cameras, in vehicle infotainment.

Massive Machine Type Communication (mMTC) provides a mix of Technologies (GSM, LoRa, ZigBee, WLAN, BT, LTE NB-IoT and Cat-M,…) for use cases where the massive connectivity is the key service requirement.


Hardware
Innovative semiconductor products
5G components and modules:
  • 5G modules for eMBB, uRLLC & mMTC (LPWAN)
  • 5G ready single board computer & router SoMs
  • 5G routers, telematics gateways & tracking devices
  • 5G antennas
  • SIM cards


5G bundling components:
  • Displays
  • Cameras
  • Plugs & Cables
  • Memories
  • Sensors
Software
Ready to use software and SDKs
Operating systems:
  • Android, Linux, Windows
  • Robotics Operating System (ROS)
  • RTOS: FreeRTOS, ThreadX
  • Router OS


SDKs:
  • Snapdragon Neural Processing Engine (SNPE) SDK
  • AI Frameworks
  • Qualcomm ® Computer Vision Suite
  • Qualcomm LTE for IoT SDK
  • Remote Management tools and cloud solutions
  • CPE / router software SDK, development and debugging tools
  • Demo code and examples
Technical Consulting & Support
Hardware and software consulting
Consulting:
  • Hardware and software consulting
  • Support Packages
  • Getting –started sessions
  • Selection of the right components


Design-In support:
  • Design-In support through own FAE team
  • Standard development kits
  • Application specific development kits (Mi-Fi, CPE, Robotics and more..)



Production & Logistic Services
Worldwide delivery & production, flexible stocking models
Logistic services:
  • Worldwide delivery
  • Flexible stocking models
  • Supply chain / PCN / EOL monitoring


Production services:
  •  Provision of production capacities
Hardware
Integration of different hardware components

Development:

  • Integration and combination of different hardware components
  • Custom printed circuit board assemblies (PCBAs)
  • Interface Boards to connect additional hardware
  • Customization of our standard products


Tests:

  • Solutions and components verification
  • Schematic design simulation and review
  • RF tuning (performance) and antenna designs
Software
Integration of hardware with software

Development:

  • Integration of hardware with software
  • Software architecture and bring up
  • Driver development
  • Custom algorithm
  • Camera and system tuning


Tests:

  • Software verification and testing
  • Support and bug-fixing during maintenance period
  • Software certification support
Technical Consulting & Support
Hardware and software consultation

Consulting:

  • Hardware and software consulting
  • Support packages
  • Getting- started sessions
  • Selection of the right components


Design-In support:

  • Design-In suppport through own FAE team
  • Application specific development kits using selected components
Production & Logistic Services
Worldwide delivery & production, flexible stocking models

Logistic services:

  • Worldwide delivery
  • Flexible stocking models
  • Supply chain, PCN, EOL monitoring


Production services:

  • Tooling
  • Casing
  • Packaging
  • Provision of production capacities
Hardware
Mass production & ODM services

Development:

  • Complete development of turnkey solutions and products
  • Mechanical design
  • Industrial design


Tests:

  • Product testing
Software
End-to-End SW Solutions

Development:

  • Software development
  • Application development
  • Interface to cloud/ backend
  • Connectivity solutions


Tests:

  • System stability and performance testing
  • Software verification and testing
  • Support and bug-fixing during maintenance period
  • Software certification support
Technical Consulting & Support
Product design consulting

Consulting:

  • Hardware and software consulting
  • Proof of concepts and feasibility studies
  • Marketing and development strategy


Design-In support:

  • Design-in support through own FAE team
  • Thermal review and optimization
  • Security certification solutions


Certification support:

  • Certifications (CE (Red), FCC, and more..)
  • Carrier approvals
Production & Logistic Services
Worldwide delivery & production, flexible stocking models

Logistic services:

  • Worldwide delivery
  • Flexible stocking models
  • Supply chain, PCN, EOL monitoring


Production services:

  • Tooling
  • Casing
  • Production
  • Packaging
  • Provision of production capacities

5G Portfolio

Products Overview

5G Modules

Our high-performance or low power modules for 5G eMBB or mMTC (LPWAN) cellular connectivity are available in M.2 or LGA form factor.

They are based on Qualcomm's Snapdragon X55 5G modem-RF system for mmWave & sub-6GHz, or LPWAN chipsets like the new MDM9205 for NB-IoT only, CAT-M1 only, NB-IoT + CAT-M1 combo, and NB-IoT + CAT-M1 + 2G fallback combo solutions. The integrated GNSS receiver supports GPS/GLONASS/BeiDou/Galileo/QZSS.

RASPBERRY PI SHIELD HAT FOR LTE AND 5G

TOGETHER WITH THE QUECTEL MODULES FOR 5G AND LTE, YOUR APPLICATION BECOMES AVAILABLE WORLDWIDE IN SECONDS THANKS TO THE _ATXX SHIELD HAT.

Control and data transfer at high speed are immediately guaranteed. The M.2 module interface as well as the USB 3.0 connection ensure this. With the Raspberry Pi you also have a versatile Linux platform for testing and developing programs and applications. Wi-Fi and Bluetooth are also at your disposal.

5G SINGLE BOARD COMPUTER

We provide directly include cellular connectivity (for LPWAN) or a M.2 interface to be combined with our 5G eMBB modules.

The range from high performance, like the Qualcomm RB5 robotics platform, to low power SBCs that we can easily customize for all kind of tracking devices. Designed for industrial conditions – high temperature range, long lifetime and industrial communication protocols.

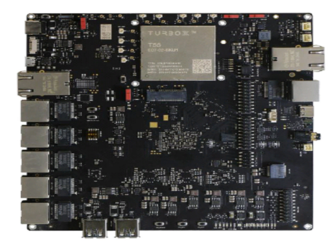

5G Development Kits for EMBB

Atlantik provides a huge set of development boards to accelerate 5G development for various use cases.

They are available for both sub-6Ghz and mmWave 5G connectivity with different antenna options and interfaces to host processors over GbE, USB, PCIe or M.2. Application specific development boards include 5G-to-Wi-Fi6 (using QCA6391 2x2 ax SoC) and access point / router  (using IPQ8074A Quad-Core as host with 10GbE interface) variants.

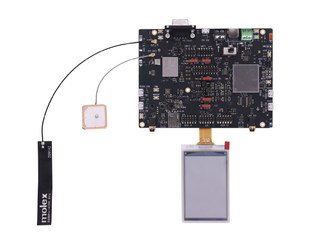

5G Development Kits for MMTC (LPWAN)

Our LPWAN development boards provide Cat M1/Cat NB2, E-GPRS connectivity with GNSS function.

Integrated ARM Cortex A7 application processor & MCUs (QCA4020 Wi-Fi & BT & MCU) can be used to run custom applications. Available interfaces include: RS232, USB 2.0 Expansion Connectors, (SPI, Uart, I2S, PWM), 3.7V Battery Connector and they also include a 2.9 Inch E-Papers and on board sensors: 6-Axis: Acc & Gyro, Ambient & Proximity, Temperature & Humidity, Pressure

5G Embedded Processing Solutions

We provide a huge set of processors, system on chips, system on modules and single board computers ranging from ARM Cortex M0 MCUs up to Octa-Core ARM Cortex-A76 or Intel X86 based processors that can be used as a host in 5G applications.

This includes latest Snapdragon technology for AI and edge computing as well as router & access point CPUs / SoMs with complete CPE / router software SDK, development and debugging tools.

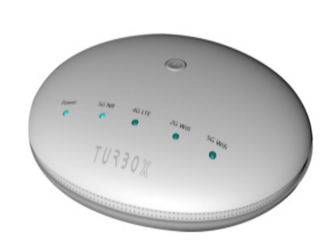

5G Reference Designs

Our 5G reference designs helps our customers reduce development costs and significantly shorten time to market. They can be modified according to specific needs and use cases.

Examples are a design for 5G to Wi-Fi 6 Mobile Hotspots, 5G customer premise equipment and a new product style - A 5G CPE integrated smart speaker that can be linked with other mesh speakers. A LPWAN example is Low Power AI Solution with always on computer vision sensor.

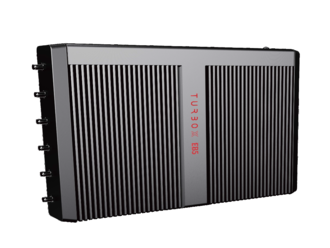

5G finished products

Our 5G finished products are ready to test, use & deploy.

They range from Snapdragon based 5G / Wi-Fi 6 Edge Computer running Linux and Android for AI and video applications, an AI kit enabling the most powerful on-device AI vision for edge devices or Cellular modems & telematc gateways for tracking and communication. For these devices we provide tools for SW development, an algorithm SDK, development guides and demo code.

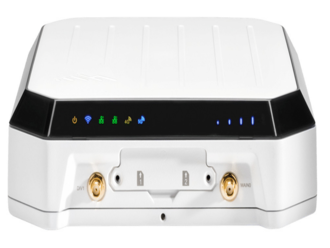

5G Cellular Router

Our 5G adapters provide industry-leading Wireless WAN connectivity Designed for branches that require the flexibility of wireless and the performance of 5G, a new era of wide-area networking.

They use 4G up to CAT 20 fallback, Wi-Fi 6 and 2.5GbE LAN connectivity, as well as the ports, interfaces, and software to make it optimized for 5G. We also provide the right antenna and SW / remote management tools for our 5G router portfolio.

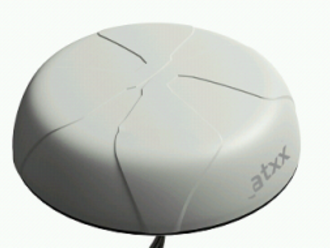

5G Antennas

We offer the right 5G antennas for your application, whether standard, customized or fully customized.

Our 5G antennas service include consulting & evaluation (feasibility study, risk identification, proof of concept, antenna component selection), antenna design (antenna placement, antenna layout , RF specification, antenna system design & optimization) and testing & certification (antenna OTA testing, interference mitigation, radio approval, pre-certification).

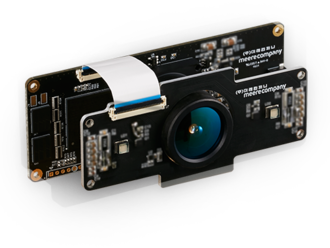

5G Bundling Components

We provide the right components for your 5G design.

Displays with touch panels, custom cover glass and mechanical design. RGB Cameras and Time of Flight. Embedded memories on IC and module level Sensors like temperature sensors, gas sensors (CO, CO2, Nox,..), magnetic sensors, infrared sensors.

Design and Development Shop

Samples, Development Kits and more

Our Online Shop is limited to the most popular and latest products. Our current portfolio contains more than 20,000 products. If you are looking for a special component, please contact us personally.
